Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / Blueooth / WiFi / WI-MAX / 5G LTE Antennas / LTE
Mountings: Fixed Mounted Base Station / Brackets
Polarity: VERTICAL OR HORIZONTAL
Gain: 13dB
VSWR: 1.5 to 1
Dimensions: Height: N/A / Width: N/A / Length: N/A / Diameter: N/A
Cable: 0.00 metres of To be specified
Connector: N-Type Socket
Power Handling: 75 Watts
Impedance: 50 Ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

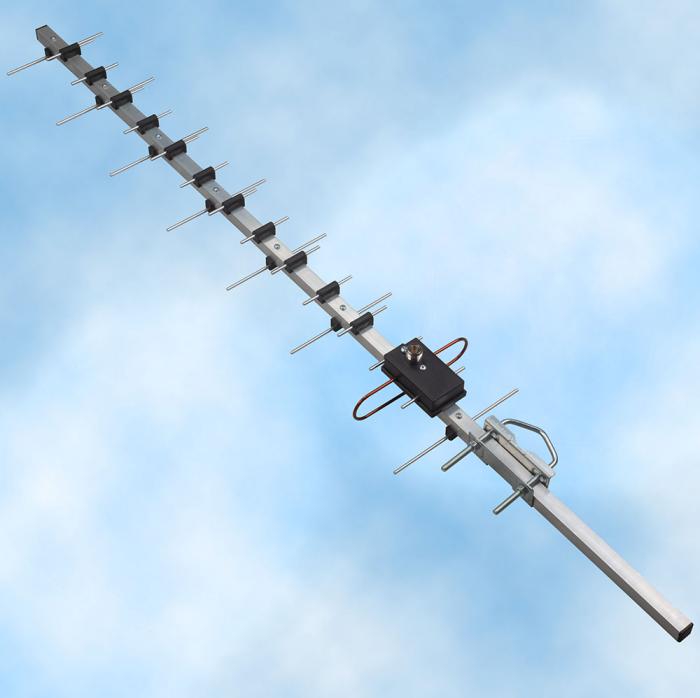

YAGI ANTENNA QUAD BAND LTE HI GAIN
ID : YAGIQUADBAND
1Frequency: Low Band / TETRA / UHF / VHF
Mountings: Fixed Body Mount / Fixed Mounted Base Station
Polarity: Vertical
Gain: 3 dbi
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: Cut To Frequency / Width: N/A / Length: N/A / Diameter:
Cable: 0.00 metres of URM76
Connector: To Be Specified
Power Handling: 40 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
TRU 1/2 WAVE WITH SMALL WALL BRACKET
ID : TRUW/B
2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / Blueooth / WiFi / WI-MAX / 5G LTE Antennas / LTE
Mountings: Brackets / Fixed Mounted Base Station
Polarity: Vertical
Gain: 3 dbi
VSWR: 1.2 : 1
Dimensions: Height: 14 cm / Width: 1.5 cm / Length: 14 cm / Diameter: N/A
Cable: 3.00 metres of RG174
Connector: To Be Specified
Power Handling: 30 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP68 RATED
DIPOLE 2G3G4G5G WITH MOULDED BRACKET
ID : 2G3G4G5G ECODIPB
